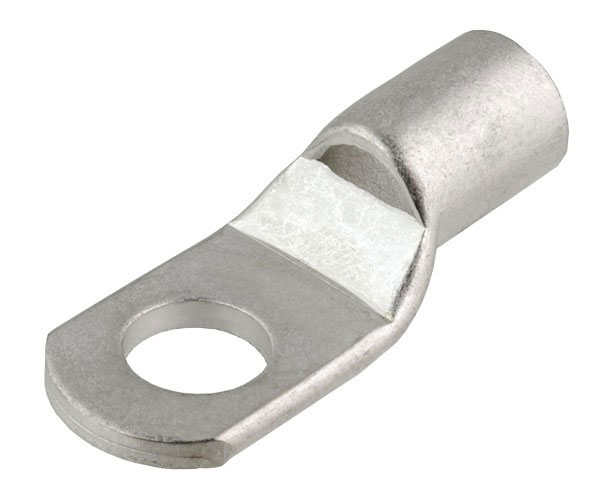

CABLE LUG

Category:

Material : Cu
Surface : Tin-Plated

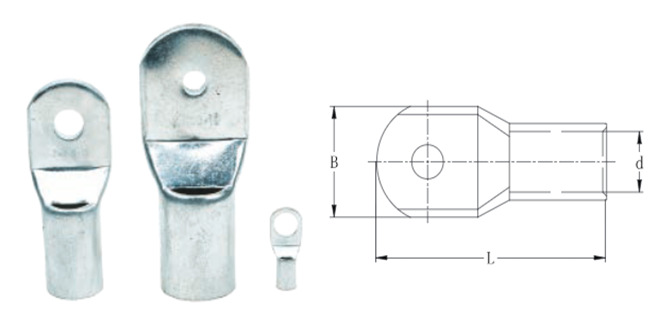

Item No. mm2 Stub Hole B d L Packing Unit
1.5-5 1.5 5.2 8.0 1.9 18.0 100 pcs
2.5-5 2.5 5.2 8.0 2.8 20.0 100 pcs
2.5-6 6.5 9.0 2.8 20.0 100 pcs
4-5 4 5.2 8.0 3.2 20.5 100 pcs
4-6 6.5 9.3 3.2 22.0 100 pcs
6-6 6 6.5 9.8 3.7 23.0 100 pcs
6-8 8.4 12.0 3.7 24.0 100 pcs
10-6 10 6.5 10.3 4.5 24.0 100 pcs
10-8 8.4 12.0 4.5 25.0 100 pcs
10-10 10.5 13.2 4.5 26.5 100 pcs
16-6 16 6.5 11.0 5.7 27.5 100 pcs
16-8 8.4 12.5 5.7 29.5 100 pcs
16-10 10.5 14.0 5.7 30.0 100 pcs
25-6 25 6.5 13.1 7.2 32.5 100 pcs
25-8 8.4 13.1 7.2 33.0 100 pcs
25-10 10.5 14.5 7.2 34.0 100 pcs
25-12 13.0 16.5 7.2 37.0 100 pcs
35-6 35 6.5 15.8 8.5 36.0 100 pcs
35-8 8.5 15.8 8.5 37.0 100 pcs
35-10 10.5 15.8 8.5 38.0 100 pcs
35-12 13.0 17.4 8.5 38.0 100 pcs
50-8 50 8.5 18.1 9.8 42.5 50 pcs
50-10 10.5 18.1 9.8 44.0 50 pcs
50-12 13.0 18.3 9.8 44.0 50 pcs
70-8 70 8.5 21.0 11.5 48.5 50 pcs
70-10 10.5 21.0 11.5 50.0 50 pcs
70-12 13.0 21.0 11.5 50.0 50 pcs
70-16 17.0 23.0 11.5 50.0 50 pcs
95-8 95 8.5 24.8 13.7 57.0 50 pcs
95-10 10.5 24.8 13.7 57.0 50 pcs
95-12 13.0 24.8 13.7 57.0 50 pcs
95-16 17.0 26.0 13.7 57.0 50 pcs
120-10 120 10.5 27.5 15.0 61.5 50 pcs
120-12 13.0 27.5 15.0 63.0 50 pcs
120-16 17.0 27.5 15.0 63.5 50 pcs
150-10 150 10.5 30.0 16.7 71.0 50 pcs
150-12 13.0 30.0 16.7 71.0 50 pcs
150-16 17.0 30.0 16.7 71.0 50 pcs
185-10 185 10.5 34.0 19.2 77.0 50 pcs
185-12 13.0 34.0 19.2 77.0 50 pcs
185-16 17.0 34.0 19.2 79.0 50 pcs
240-10 240 10.5 37.4 21.0 89.5 40 pcs
240-12 13.0 37.4 21.0 89.5 40 pcs
240-16 17.0 37.4 21.0 91.0 40 pcs
300-16 300 17.0 43.2 24.0 100.0 25 pcs
400-16 400 17.0 49.0 27.0 111.0 16 pcs
500-20 500 21.0 55.0 30.0 123.0 12 pcs
630-20 630 21.0 64.0 35.0 135.0 8 pcs
