BRASS CW ARMOURED CABLE GLAND

Category:

Material :  BRASS

Working Temperature : -40oC to 100oC

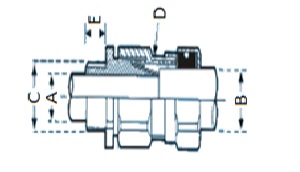

Item No. Cable Range (mm) Thread (mm) Packing Unit
A B D C E
IN-CW-20S 11.6 16.0 0.90/1.25 20.0 10.0
IN-CW-20L 14.0 20.0 0.90/1.25 20.0 10.0
IN-CW-25S 19.0 24.0 1.25/1.6 25.0 10.0
IN-CW-25L 20.0 27.0 1.25/1.6 25.0 10.0
IN-CW-32S 24.0 30.5 1.60/2.0 32.0 10.0
IN-CW-32L 26.2 33.0 1.60/2.0 32.0 10.0
IN-CW-40S 30.0 37.0 1.60/2.0 40.0 11.0
IN-CW-40L 32.5 41.0 1.60/2.0 40.0 11.0
IN-CW-50S 40.0 47.5 2.00/2.5 50.0 13.0
IN-CW-50L 44.0 52.6 2.00/2.5 50.0 13.0
IN-CW-63S 51.0 60.0 2.50 63.0 14.0
IN-CW-63L 55.0 66.0 2.50 63.0 14.0
IN-CW-75S 62.0 72.0 2.50 75.0 15.0
IN-CW-75L 67.0 78.0 2.50 75.0 15.0
