GIRAELICA, GN-120B2 AXIAL FAN

Category:

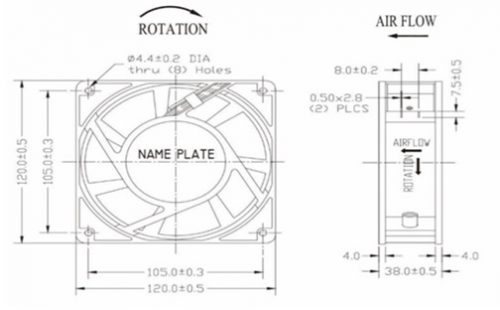

Size : 120mm x 120mm x 38mm
Air Flow : 133 ~ 190m3/hr
78 ~ 112 CFM
Weight : 490g
Noise : 35 ~ 44dBA
Impeller Material : PBT Thernoplastic Black, UL 94-V0
Frame : Alumium Alloy
Terminals : 0.5mm
Lead Wire : AWG#22 UL 1569 (Optional)
Motor : Shaded Pole Induction Motor
Operating Temperature : – 10 deg ~ + 65 deg

Item No. Size (mm) Voltage Bearing Speed Noise Air Flow
System RPM dBA M3/hr CFM
GN-120B2-24 120 x 120 x 38 24VAC BALL 2600/3000 43/48 160/166 93/98
GN-120B2-110 110VAC
GN-120B2-240 240VAC
GN-120B2-415 415VAC
GN-12038H-12V 120 x 120 x 38 12VDC BALL 2600/3000 43/48 160/166 93/98
GN-12038H-24V 24VDC
GN-12038H-48V 48VDC
