GIRAELICA, GN-170D2 AXIAL FAN

Category:

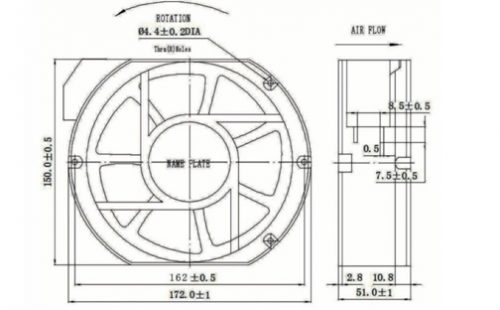

Size : 172mm x 150mm x 51mm
Air Flow : 195 ~ 416m3/hr
115 ~ 245 CFM
Weight : 850g
Noise : 45 ~ 56dBA
Impeller Material : PBT Thernoplastic Black, UL 94-V0
Frame : Alumium Alloy
Terminals : 0.5mm
Lead Wire : AWG#22 UL 1569 (Optional)
Motor : Shaded Pole Induction Motor
Operating Temperature : – 10 deg ~ + 65 deg

Item No. Size (mm) Voltage Bearing Speed Noise Air Flow
System RPM dBA M3/hr CFM
GN-170D2-110V 172 x 150 x 51 110VAC BALL 2600/3000 46/52 340/416 200/245
GN-170D2-240V 240VAC
