GIRAELICA, GN-170E AXIAL FAN (HEAVY DUTY)

Category:

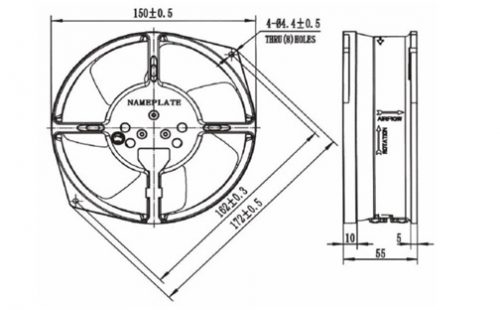

Size : 170mm x 150mm x 55mm
Air Flow : 289 ~ 380m3/hr
170 ~ 224 CFM
Weight : 1200g
Noise : 45 ~ 52dBA
Impeller Material : Metal
Frame : Alumium Alloy
Terminals : 0.5mm
Lead Wire : AWG#22 UL 1332 (Optional)
Motor : Shaded Pole and External Rotor Induction Motor
Operating Temperature : – 10 deg ~ + 105 deg

Item No. Size Voltage Bearing Speed Noise Air Flow
System RPM dBA M3/hr CFM
GW-170E2-240 170 x 150 x 55 240VAC Ball 2800/3100 48/52 325/380 191/224
