GIRAELICA, GN-220F AXIAL FAN

Category:

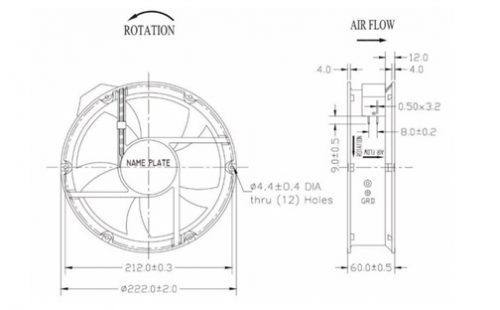

Size : DIA : 220mm x 60mm
Air Flow : 730 ~ 824m3/hr
430 ~ 485 CFM
Weight : 1250g
Noise : 55 ~ 67dBA
Impeller Material : PBT Thernoplastic Black, UL 94-V0
Frame : Alumium Alloy
Terminals : 0.5mm
Lead Wire : AWG#22 UL 1015 (Optional)
Motor : Capacitor – Run Induction Motor
Operating Temperature : – 10 deg ~ + 65 deg

Item No. Size Voltage Bearing Speed Noise Air Flow
System RPM dBA M3/hr CFM
GN-220F2-240V Dia. : 220 x 60 240VAC Ball 2800/3100 55/67 730/824 430/485
