GIRAELICA, GN-225H2C AXIAL FAN (HEAVY DUTY)

Category:

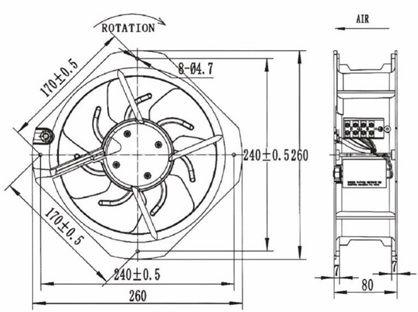

Size : 225mm x 225mm x 80mm
Air Flow : 925 ~ 1030m3/hr
545 ~ 607 CFM
Weight : 2112g
Noise : 56 ~ 61dBA
Impeller Material : Metal
Frame : Alumium Alloy
Terminals : 0.5mm
Lead Wire : AWG#22 UL 1332 (Optional)
Motor : Capacitor – Run and External Rotor Induction Motor
Operating Temperature : – 10 deg ~ + 105 deg

Item No. Size Voltage Bearing Speed Noise Air Flow
System RPM dBA M3/hr CFM
GW-225H2C-240V 225 x 225 x 80 240VAC BALL 2700/3100 59/61 925/1030 545/607
