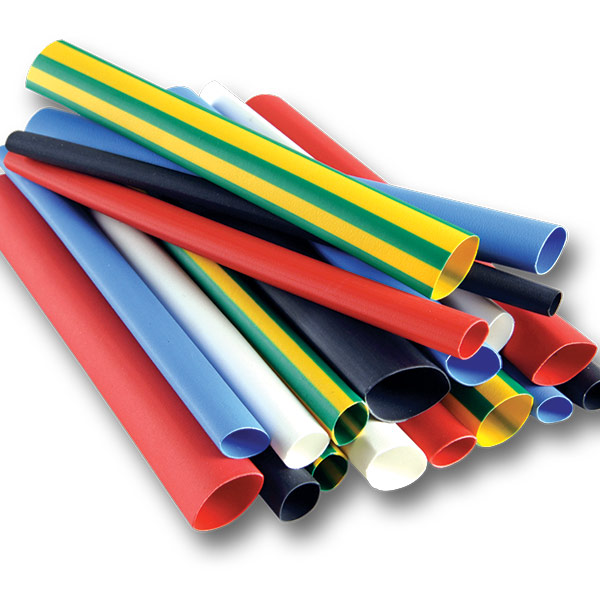

HEAT SHRINKABLE TUBE

Category:

Technical Data

Property Test Method Typical Data
Operating Temperature UL 224 -55 °C ~ + 125°C
Tensile Strength ASTM D 2671 14MPa
Ultimate Elongation ASTM D 2671 400%
Longitudinal Shrinkage UL 224 +/- 5%
Eccentricity ASTM D 2671 < 20%
Heat aging Tensile Strenght Ultimate Elongation 158°C , 168 hrs 14MPa
Flammability VW-1 Pass
Dielectric Strength IEC 243 20kV/mm
Volume Resistance IEC 93 1014 Ω.cm
Copper Stability ASTM D 2671 Pass
Colours RED, YELLOW, BLUE, BLACK, GREEN, WHITE, BROWN, GREY, GREEN/YELLOW
Item No. Ø As Supplied (mm) After Recovered (mm) Packing Unit
Inside Diameter Wall Thickness Inside Diameter Wall Thickness
H-2(Z)-0.8 0.8 1.30 0.18 0.35 0.30 200 mtr
H-2(Z)-1 1.0 1.50 0.18 0.50 0.33 200 mtr
H-2(Z)-1.5 1.5 2.00 0.18 0.75 0.36 200 mtr
H-2(Z)-2 2.0 2.70 0.25 1.00 0.44 200 mtr
H-2(Z)-2.5 2.5 3.10 0.25 1.25 0.44 200 mtr
H-2(Z)-3 3.0 3.70 0.25 1.50 0.44 200 mtr
H-2(Z)-3.5 3.5 4.00 0.25 1.75 0.44 200 mtr
H-2(Z)-4.0 4.0 4.70 0.25 2.00 0.44 200 mtr
H-2(Z)-5 5.0 5.60 0.25 2.50 0.56 100 mtr
H-2(Z)-6 6.0 6.80 0.25 3.00 0.56 100 mtr
H-2(Z)-7 7.0 7.70 0.25 3.50 0.56 100 mtr
H-2(Z)-8 8.0 8.80 0.30 4.00 0.56 100 mtr
H-2(Z)-9 9.0 9.80 0.30 4.50 0.56 100 mtr
H-2(Z)-10 10.0 10.70 0.30 5.00 0.56 100 mtr
H-2(Z)-11 11.0 11.70 0.30 5.50 0.56 100 mtr
H-2(Z)-12 12.0 12.70 0.30 6.00 0.56 50 mtr
H-2(Z)-13 13.0 13.70 0.30 6.50 0.65 50 mtr
H-2(Z)-14 14.0 14.70 0.35 7.00 0.69 50 mtr
H-2(Z)-15 15.0 15.70 0.35 7.50 0.69 50 mtr
H-2(Z)-16 16.0 16.70 0.35 8.00 0.69 50 mtr
H-2(Z)-18 18.0 19.00 0.40 9.00 0.80 50 mtr
H-2(Z)-20 20.0 21.40 0.40 10.00 0.80 50 mtr
H-2(Z)-22 22.0 23.40 0.45 11.00 0.80 50 mtr
H-2(Z)-25 25.0 26.50 0.45 12.50 0.90 50 mtr
H-2(Z)-30 30.0 31.50 0.45 15.00 0.90 50 mtr
H-2(Z)-40 40.0 42.00 0.50 20.00 1.00 50 mtr
H-2(Z)-50 50.0 52.00 0.50 25.00 1.00 50 mtr
H-2(Z)-60 60.0 62.00 0.50 30.00 1.00 30 mtr
H-2(Z)-70 70.0 72.00 0.50 35.00 1.20 30 mtr
H-2(Z)-80 80.0 82.00 0.55 40.00 1.20 30 mtr
H-2(Z)-100 100.0 102.00 0.55 50.00 1.30 30 mtr
H-2(Z)-120 120.0 121.00 0.55 60.00 1.30 15 mtr
H-2(Z)-150 150.0 151.00 0.55 75.00 1.30 15 mtr
