HIBOX, SWITCH BOX

Category:

Material            : AG  Body (ABS) Grey, Cover (ABS) Grey

                                : AT  Body (ABS) Grey, Cover (PC) Clear

Protection       : IP67, IK08

Temperature  : ABS (-40deg to +85deg)

                                : PC/ABS (-40deg to +90deg)

ENQUIRE NOW

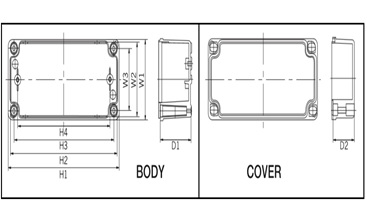

Item No. Dimension (mm)
Solid Cover Clear Cover W1 H1 D D1 D2
DS-AG-0811 DS-AT-0811 80 110 70 50 20
DS-AG-0811-1 DS-AT-0811-1 80 110 85 50 35
DS-AG-0811-S DS-AT-0811-S 80 110 45 25 20
DS-AG-0813 DS-AT-0813 80 130 70 50 20
DG-AG-0813-1 DS-AT-0813-1 80 130 85 50 35
DS-AG-0818 DS-AT-0818 80 180 70 50 20
DS-AG-0818-1 DS-AT-0818-1 80 180 85 50 35
DS-AG-0820 DS-AT-0820 80 200 70 50 20
DS-AG-0825 DS-AT-0825 80 250 70 50 20
DS-AG-0825-1 DS-AT-0825-1 80 250 85 50 35
DS-AG-1010 DS-AT-1010 100 100 100 80 20
DS-AG-1212-S DS-AT-1212-S 125 125 75 55 20
DS-AG-1212 DS-AT-1212 125 125 100 80 20
DS-AG-1217 DS-AT-1217 125 175 75 50 25
DS-AG-1217-1 DS-AT-1217-1 125 175 100 50 50
DS-AG-1417 DS-AT-1417 140 170 95 75 20
DS-AG-1520 DS-AT-1520 150 200 100 80 20
DS-AG-1520-1 DS-AT-1520-1 150 200 130 80 50
DS-AG-1525 DS-AT-1525 150 250 100 80 20
DS-AG-1525-1 DS-AT-1525-1 150 250 130 80 50
DS-AG-2020-S DS-AT-2020-S 200 200 95 75 20
DS-AG-2020 DS-AT-2020 200 200 130 110 20
