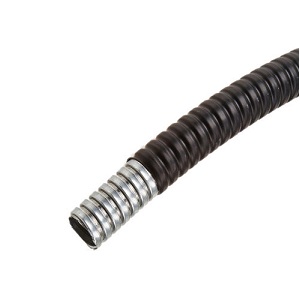

PVC COATED GI FLEXIBLE CONDUIT

Category:
1) Galvanized Steel Core, PVC Jacketed
2) Light Style, High Flexibility and Liquid-tightness
3) Waterproof, Corrosion Resistant, Sunlight Resistant
4) For Mass Production Equipment, Machine Tools and
any marrow space for electrical wiring applications.
5) Temparature : -10oC ~ +70oC, -20oC ~+90oC,
                            -20oC ~ +105oC, -40oC ~ + 120oC
6) PVC Color : Black
Item No. Sizes Inside Diameter (mm) Outside Diameter (mm) Bending Packing Unit
Min Max Min Max Radius
PCFC-012 1/2″ 15.8 16.3 20.2 20.7 65 30mtr
PCFC-058 5/8″ 18.3 18.8 22.9 23.4 70 30mtr
PCFC-034 3/4″ 20.7 21.2 25.5 26.1 75 15mtr
PCFC-100 1″ 26.0 26.6 31.6 32.2 100 15mtr
PCFC-114 1 1/4″ 34.7 35.4 40.8 41.5 125 7.5mtr
PCFC-112 1 1/2″ 40.0 40.6 46.6 47.2 150 7.5mtr
PCFC-200 2″ 51.3 51.9 58.1 58.7 175 7.5mtr
