SB SNAP BUSHING

Category:

Material : UL APPROVED NYLON 66

Color : BLACK

ENQUIRE NOW

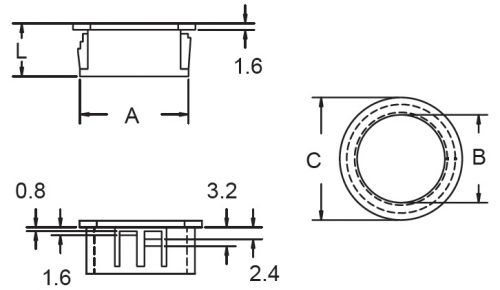

Item No. Hole Range (mm) Dimension Packing Unit
A(mm) B(mm) L(mm)
HP-5 4.6 ~ 5.0 4.5 6.7 5.7 100pc
HP-6 5.9 ~ 6.2 5.7 7.8 6.7 100pc
HP-7 6.9 ~ 7.8 6.9 10.1 8.1 100pc
HP-8 7.9 ~ 8.1 7.8 10.5 8.1 100pc
HP-9 8.9 ~ 10.0 8.9 12.4 10.7 100pc
HP-10 9.7 ~ 11.1 9.5 13.3 10.7 100pc
HP-11 10.8 ~ 13.0 10.8 14.0 10.7 100pc
HP-12 11.9 ~ 13.6 11.9 15.0 10.7 100pc
HP-13 12.8 ~ 13.5 12.5 17.0 10.7 100pc
HP-14 13.8 ~ 15.2 13.8 18.0 10.7 100pc
HP-15 14.8 ~ 16.0 14.8 17.8 10.7 100pc
HP-16 15.8 ~ 17.0 15.7 20.0 10.7 100pc
HP-18 17.8 ~ 19.5 17.8 21.7 11.0 100pc
HP-19 18.9 ~ 20.0 18.7 23.3 11.0 100pc
HP-20 19.8 ~ 21.0 19.8 23.8 11.7 100pc
HP-22 21.4 ~ 22.6 21.3 25.6 11.7 100pc
HP-25 24.7 ~ 25.7 24.5 28.5 12.0 100pc
HP-26 25.6 ~ 27.3 25.6 29.0 12.0 100pc
HP-28 27.8 ~ 28.5 27.8 31.2 12.0 100pc
HP-30 29.7 ~ 31.0 29.6 34.7 12.0 100pc
HP-32 31.6 ~ 32.5 31.6 35.6 12.0 100pc
HP-35 34.5 ~ 36.5 34.5 38.6 11.7 100pc
HP-38 37.7 ~ 38.3 37.6 42.0 11.7 100pc
HP-40 39.4 ~ 41.8 39.4 45.1 11.7 100pc
HP-45 43.7 ~ 45.5 43.6 49.7 11.7 100pc
HP-50 49.0 ~ 50.5 48.9 55.0 11.7 100pc
HP-55 54.5 ~ 56.0 54.5 60.0 11.7 100pc
HP-60 59.5 ~ 61.0 59.5 64.5 11.7 100pc
HP-63 62.3 ~ 65.3 62.3 67.6 11.7 100pc
HP-65 64.2 ~ 66.0 64.2 69.5 11.7 50pc
HP-70 68.8 ~ 70.2 68.8 74.2 12.0 50pc
HP-75 73.8 ~ 75.5 73.8 79.4 12.0 50pc
