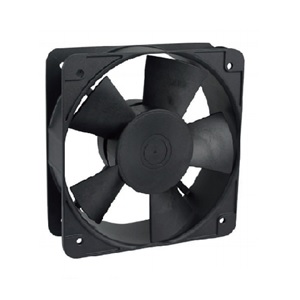

GIRAELICA, GN-200F AXIAL FAN

Category:

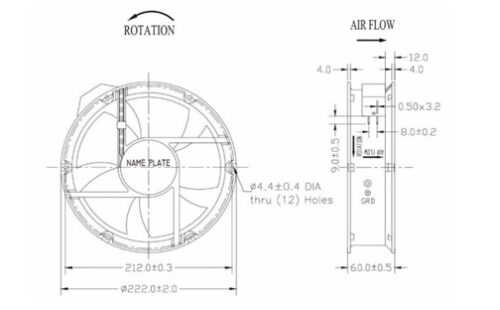

Size : DIA : 200mm x 200mm x 60mm
Air Flow : 800 ~ 960 m3/hr
471 ~ 565 CFM
Weight : 1700g
Noise : 62 ~ 68dBA
Impeller Material : PBT Thernoplastic Black, UL 94-V0
Frame : Alumium Alloy
Terminals : 0.5mm
Lead Wire : AWG#22 UL 1332 (Optional)
Motor : Capacitor – Run Induction Motor
Operating Temperature : – 10 deg ~ + 65 deg

Item No. Size Voltage Bearing Speed Noise Air Flow
System RPM dBA M3/hr CFM
GN-200F2 200 x 200 x 60 240VAC BALL 2050/2550 62/68 800/960 471/565
