Terminal Box 01

HIBOX, TERMINAL BOX

Category: Enclosure

Material : AG Body (ABS) Grey, Cover (ABS) Grey

: AT Body (ABS) Grey, Cover (PC) Clear

Protection : IP67, IK08

Temperature : ABS (-40deg to +85deg)

: PC/ABS (-40deg to +90deg)

Description

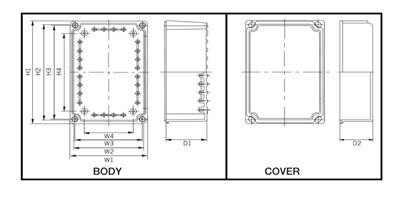

Item No.										Dimension (mm)
Solid Cover					Clear Cover					W1				H1				D				D1				D2
DS-AG-1919					DS-AT-1919					190				190				130				98				30
DS-AG-2819					DS-AT-2819					280				190				130				98				30
DS-AG-2819-1					DS-AG-2819-1					280				190				180				98				80
DS-AG-2828					DS-AT2828					280				280				130				98				30
DS-AG-3828					DS-AT-3828					380				280				130				98				30
DS-AG-3828-B					DS-AT-3828-B					380				280				180				98				80
