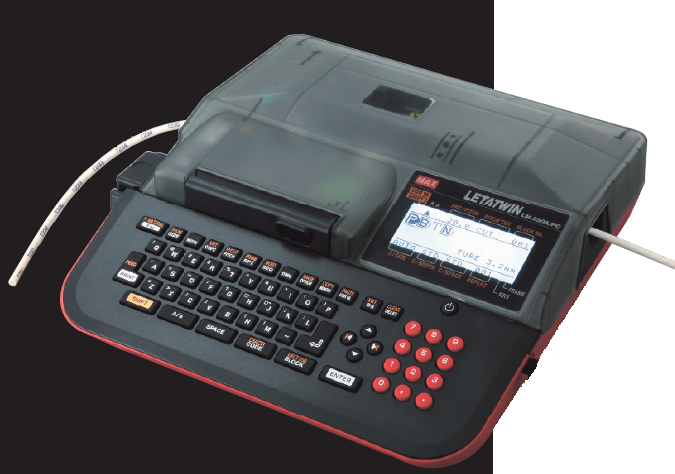

MAX ELECTRONIC LETTERING MACHINE -LM 550A/PC

Category:
SPECIFICATIONS
Model LM-550A/PC
Dimensions (W x L x H) 295Wmm x 293Lmm x 94Hmm
Weight 2.4 kg – Printer only
Printing Method Thermal Transfer (300 dpi)
Display LCD Dot Matrix(160 x 64 Pixel) – Backlit
Printing Speed 40mm/s (Standard), 20mm/s (Low Temperature Mode)
Max. Printing Length Tube : 20m, Tape : 5m
Built-in Memory Approx. 250,000 Characters or 50 Files.
File : Approx. 5000 Characters

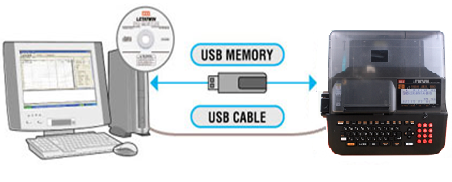

External Memory USB Memory
Character Input Alphanumeric, Symbol Input
Character Sizes 1.3mm, 2mm, 3mm, 4mm, 6mm Height
PVC Tube ø 1.5 – 8.0mm
Heat Shrinkable Tube ø 2.0 – 6.5mm
Lable Tape Width: 6mm, 9mm, 12mm (Max Genuine Tape)
Media Cutting Method Manual Full-Cutting, Automatic Half-Cutting
PC Interface USB 2.0 Full Speed
Power Supply DC 12V, 3.0A (Use only Specified AC Adapter)
Power Consumption Max 30W
Operating Environment 10oC to 35oC
MAX LM-550A CONSUMABLES
LM-IR50B Economical Ink Ribbon Refills, Black (110m)
LM-IR50W Economical Ink Ribbon Refills, White (70m)
LM-TP505W Label Tape Cassette, 5mm x 16m (White)
LM-TP509W Label Tape Cassette, 9mm x 16m (White)
LM-TP512W Label Tape Cassette, 12mm x 16m (White)
LM-TP505Y Label Tape Cassette, 5mm x 8m (Yellow)
LM-TP509Y Label Tape Cassette, 9mm x 8m (Yellow)
LM-TP512Y Label Tape Cassette, 12mm x 8m (Yellow)
LM-TP505T Label Tape Cassette, 5mm x 8m (Transparent)
LM-TP509T Label Tape Cassette, 9mm x 8m (Transparent)
LM-TP512T Label Tape Cassette, 12mm x 8m (Transparent)
LM-RC550 Ink Ribbon Case
