NON INSULATED RING TERMINAL

Category:

Material : Copper with tin plated
Brazed Seam

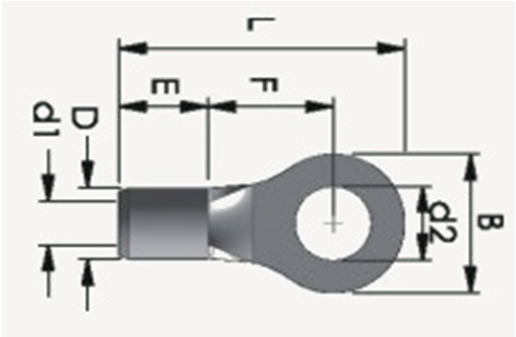

Item No. Wire Range d2 B F d1 L Packing Unit
R1-3.2 3.2 5.5 4.0 1.7 11.7 100 pcs
R1-3S 3.7 5.5 4.0 1.7 11.7 100 pcs
R1-4S 4.3 6.6 6.3 1.7 14.6 100 pcs
R1-5 0.5~1.5mm2 5.3 8.0 7.0 1.7 16.0 100 pcs
R1-6 22~16 AWG 6.5 11.6 11.1 1.7 21.8 100 pcs
R1-8 8.4 11.6 11.1 1.7 21.8 100 pcs
R1-10 10.5 13.6 13.9 1.7 25.7 100 pcs
R1-12 13.0 19.2 16.0 1.7 30.6 100 pcs
R2-3.2 3.2 6.4 4.3 2.3 12.5 100 pcs
R2-3S 3.7 6.4 4.3 2.3 12.5 100 pcs
R2-4S 4.3 6.6 6.3 2.3 14.5 100 pcs
R2-5S 5.3 8.5 7.8 2.3 17.0 100 pcs
R2-5L 1.5~2.5mm2 5.3 9.5 7.3 2.3 17.0 100 pcs
R2-6 16~14 AWG 6.5 12.0 11.0 2.3 22.0 100 pcs
R2-8 8.4 12.0 11.0 2.3 22.0 100 pcs
R2-10 10.5 13.6 13.9 2.3 25.7 100 pcs
R2-12 13.0 19.2 16.0 2.3 30.6 100 pcs
R5-3S 3.7 7.2 5.9 3.4 15.5 100 pcs
R5-4S 4.3 7.2 5.9 3.4 15.5 100 pcs
R5-5 4~6mm2 5.3 9.5 8.3 3.4 19.0 100 pcs
R5-6 12~10 AWG 6.5 12.0 10.5 3.4 22.5 100 pcs
R5-8 8.4 15.0 13.7 3.4 27.2 100 pcs
R5-10 10.5 15.0 13.7 3.4 27.2 100 pcs
R5-12 13.0 19.2 16.0 3.4 31.6 100 pcs
R8-5 5.3 12.0 9.7 4.5 23.5 100 pcs
R8-6S 6 ~10mm2 6.7 12.0 9.7 4.5 23.5 100 pcs
R8-8 8 AWG 8.4 14.0 12.0 4.5 27.0 100 pcs
R8-10 10.5 18.0 13.8 4.5 29.5 100 pcs
R14-6 6.4 11.0 13.3 5.8 25.5 100 pcs
R14-8 10 ~16mm2 8.4 14.0 13.3 5.8 31.0 100 pcs
R14-10 6 AWG 10.5 18.0 14.2 5.8 33.0 100 pcs
R14-12 13.0 18.0 14.2 5.8 33.0 100 pcs
R22-6 6.4 12.0 14.0 7.5 31.0 100 pcs
R22-8 16 ~25mm2 8.4 16.0 14.0 7.5 34.0 100 pcs
R22-10 4 AWG 10.5 18.0 15.5 7.5 35.0 100 pcs
R22-12 13.0 18.0 15.5 7.5 35.0 100 pcs
R38-6 6.4 15.3 16.0 9.4 37.7 100 pcs
R38-8 35 ~ 50mm2 8.4 15.3 16.0 9.4 37.7 100 pcs
R38-10 2 AWG 10.5 15.3 16.0 9.4 37.7 100 pcs
R38-12 13.0 22.0 17.7 9.4 42.7 100 pcs
