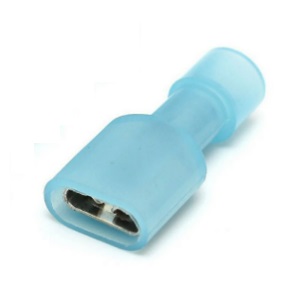

NYLON FULLY INSULATED FEMALE DISCONNECTOR

Category:

Material : BRASS

Insulation : NYLON

MAX. Rating : 105oC 600V

Item No. Wire Range Dimension (mm) Packing Unit

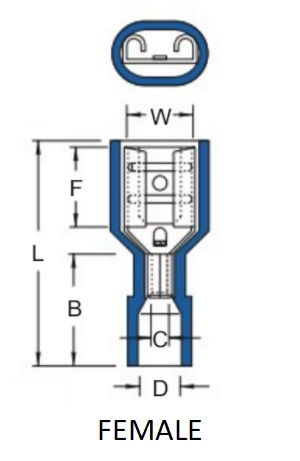

Tab, W B L F C D
FDFN1-250 RED
0.5~1.5mm2 0.8 x 6.35 11.0 22.0 7.3 1.70 4.0 100 pcs
22~16 AWG
FDFN2-250 BLUE
2.5mm2 0.8 x 6.35 11.0 22.0 7.3 2.30 4.5 100 pcs
16~14 AWG
FDFN5-250 YELLOW
4~6mm2 0.8 x 6.35 13.0 24.0 7.3 3.40 6.3 100 pcs
12~10 AWG
