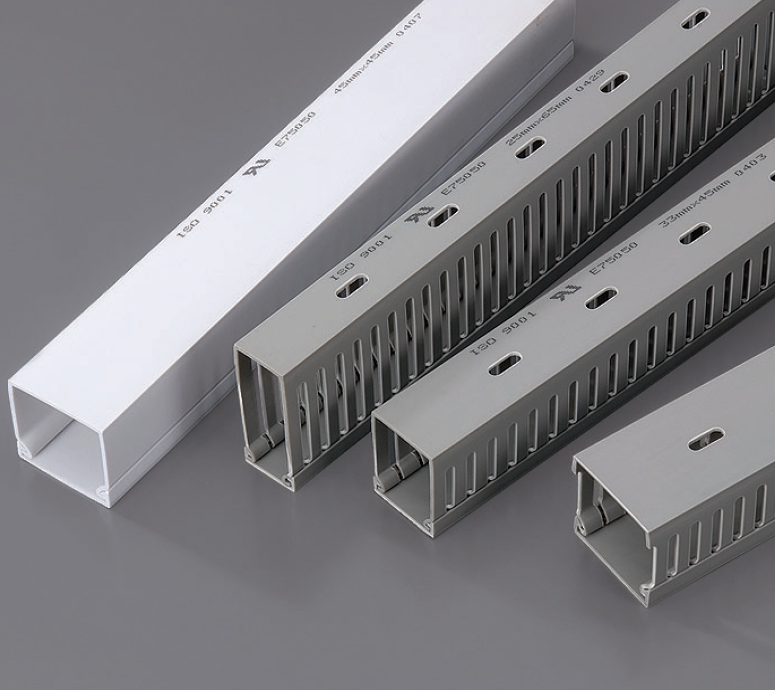

UL SLOTTED PVC WIRING DUCT

Category:

Material : PVC

Flammability : UL 94-V0

Length : 2.0 mtr

UL File : E75050

Color : Grey

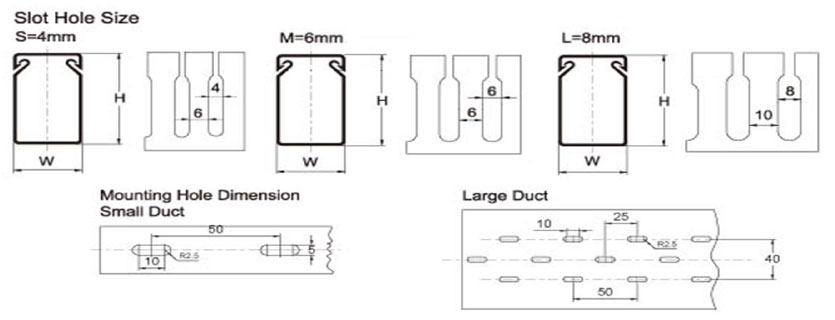

Item No. Slot Hole Size W x H Wiring Volume Hole Dimension Packing Unit
GW-1525 S L 15×25 5-12 pcs Small 132 pcs
GW-2525 S M L 25×25 10-25 pcs Small 80 pcs
GW-2545 S M L 25×45 20-25 pcs Small 60 pcs
GW-2565 S M L 25×65 40-45 pcs Small 60 pcs
GW-3333 S M L 33×33 25-54 pcs Small 60 pcs
GW-3345 S M L 33×45 40-55 pcs Small 48 pcs
GW-3365 S M L 33×65 60-75 pcs Small 48 pcs
GW-33100 S L 33×100 180-200 pcs Small 38 pcs
GW-4080 S L 40×80 120-135 pcs Small 28 pcs
GW-4545 S M L 45×45 60-70 pcs Small 48 pcs
GW-4565 S M L 45×65 110-120 pcs Small 40 pcs
GW-5050 S M L 50×50 80-90 pcs Small 24 pcs
GW-50100 L 50×100 210-260 pcs Small 30 pcs
GW-6060 S M L 60×60 120-135 pcs Small 18 pcs
GW-6080 L 60×80 180-210 pcs Small 32 pcs
GW-6545 S M L 65X45 110-120 pcs Small 40 pcs
GW-6565 S M L 65×65 110-120 pcs Small 32 pcs
GW-70100 S L 70×100 250-300 pcs Large 24 pcs
GW-7264 S L 72×64 200-220 pcs Large 24 pcs
GW-8080 L 80×80 240-290 pcs Large 16 pcs
GW-10050 L 100×50 200-250 pcs Large 18 pcs
GW-100100 L 100×100 300-400 pcs Large 12 pcs
GW-15075 L 150×75 335-500 pcs Large 8 pcs
GW-150100 L 150×100 335-600 pcs Large 8 pcs
GW-200100 L 200×100 500-800 pcs Large 4 pcs
