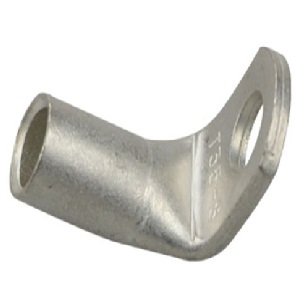

90 DEG ANGLED CABLE LUG

Category:

Material : Cu
Surface : Tin-Plated

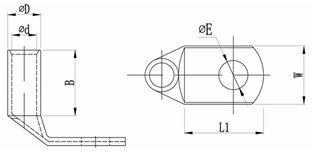

Item No. mm2 Dimension (mm) Packing Unit
E D d W B L1
C90L10-6 10 6.4 6.9 4.7 11.9 10.5 12.5 100pc
C90L10-8 8.3 6.9 4.7 13.5 10.5 15.5 100pc
C90L16-6 16 6.4 7.8 5.6 11.9 11.0 11.5 100pc
C90L16-8 8.3 7.8 5.6 13.5 11.0 15.5 100pc
C90L25-8 25 8.3 9.5 7.1 14.0 13.0 16.0 100pc
C90L25-10 10.5 9.5 7.1 16.0 13.0 19.0 100pc
C90L35-8 35 8.3 11.0 8.2 16.5 16.0 18.0 100pc
C90L35-10 10.5 11.0 8.2 16.5 16.0 22.0 100pc
C90L50-10 50 10.5 12.5 9.5 18.0 19.0 22.0 50pc
C90L50-12 13.0 12.5 9.5 18.0 19.0 22.0 50pc
C90L70-10 70 10.5 15.0 11.5 21.5 21.0 22.0 50pc
C90L70-12 13.0 15.0 11.5 21.5 21.0 22.0 50pc
C90L95-10 95 10.5 17.0 13.5 24.7 24.0 32.8 50pc
C90L95-12 13.0 17.0 13.5 24.7 24.0 32.8 50pc
C90L120-12 120 13.0 20.0 15.6 29.0 27.0 32.5 50pc
C90L120-16 16.5 20.0 15.6 29.0 27.0 32.5 50pc
C90L150-16 150 16.5 21.0 16.5 30.4 32.0 33.0 50pc
C90L185-16 185 16.5 23.6 18.4 34.0 34.0 35.0 50pc
