MARK SERIES PVC MARKING TUBE

Category:

Material : PVC

Standard color : White, Red, Yellow, Blue, Black, Green and Transparent

**Flame retardant 94-V0 quality tubes is available on demand basic

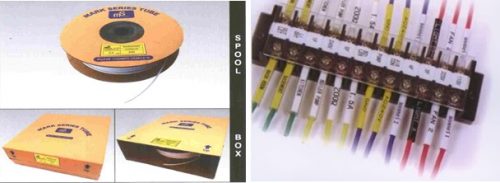

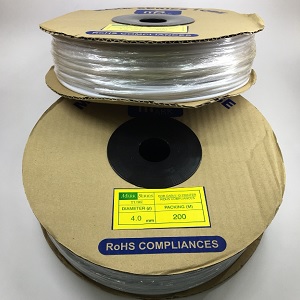

**Supplying in both spool & box type
**Full range of tubes size ranging from 2.0mm ~ 10.0mm

ENQUIRE NOW

Item No. Internal Diameter (mm) Applicable Cable Packing Unit
Spool Box Flexible Hard Core
M-20200W M-20200WB 2.0mm < 0.5 mm2 – 200 m
M-25200W M-25200WB 2.5mm 0.50 ~ 0.75 mm2 – 200 m
M-30200W M-30200WB 3.0mm 0.75 ~ 1.0 mm2 1.5 mm2 200 m
M-32200W M-32200WB 3.2mm 1.5 mm2 1.5 mm2 200 m
M-35200W M-35200WB 3.5mm 1.5 mm2 1.5 mm2 200 m
M-36200W M-36200WB 3.6mm 1.5 mm2 1.5 ~ 2.5 mm2 200 m
M-40200W M-40200WB 4.0mm 2.5 mm2 1.5 ~ 2.5 mm2 200 m
M-42200W M-42200WB 4.2mm 2.5 mm2 4 mm2 200 m
M-45200W M-45200WB 4.5mm 4.0 mm2 4 mm2 200 m
M-50200W M-50200WB 5.0mm 4.0 ~ 6.0 mm2 6 mm2 200 m
M-52200W 5.2mm 4.0 ~ 6.0 mm2 6 mm2 200 m
M-55200W M-55200WB 5.5mm 6.0 mm2 6 mm2 200 m
M-60200W 6.0mm 10 mm2 10 mm2 200 m
M-65100W 6.5mm 10 ~ 16 mm2 10 ~ 16 mm2 100 m
M-70100W 7.0mm 10 ~ 16 mm2 10 ~ 16 mm2 100 m
M-80100W 8.0mm 16 mm2 16 mm2 100 m
M-10100W 10mm 16 ~ 25 mm2 25 mm2 100 m
